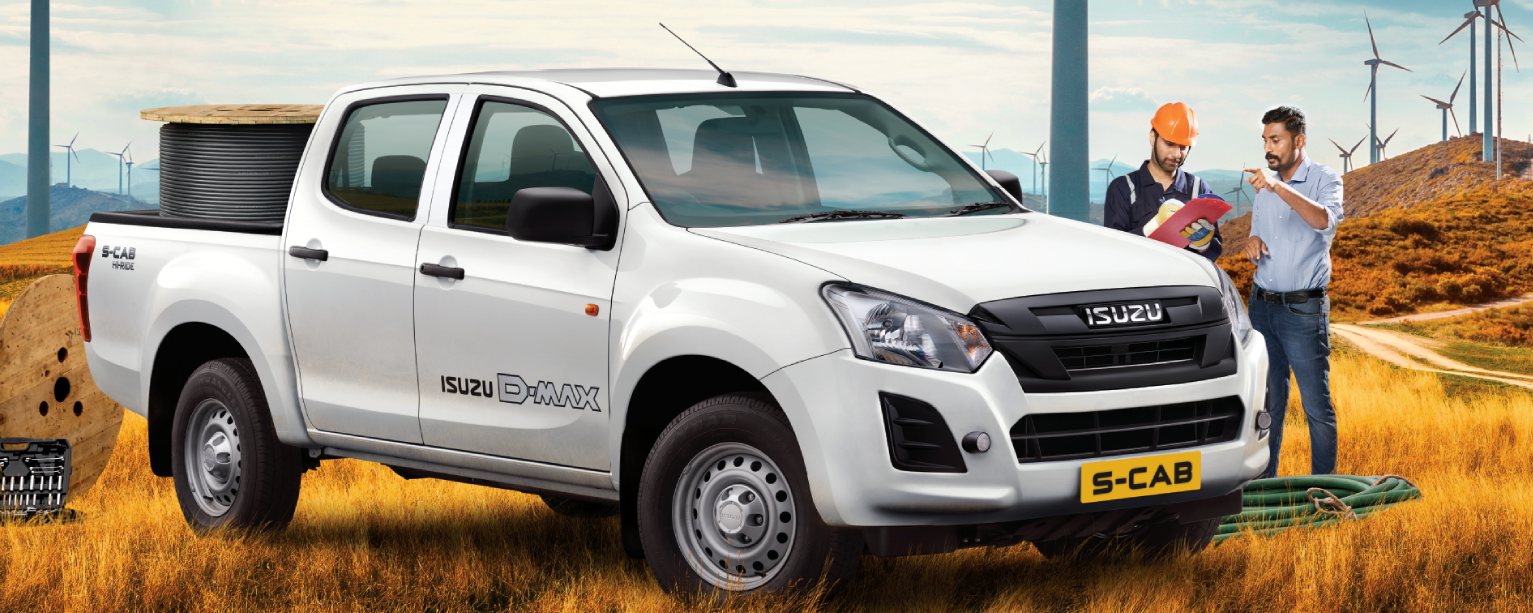

New Isuzu D-Max S-CAB combines power and technology. This popular workhorse has been upgraded and empowered with the development of technology, making it the ultimate choice.

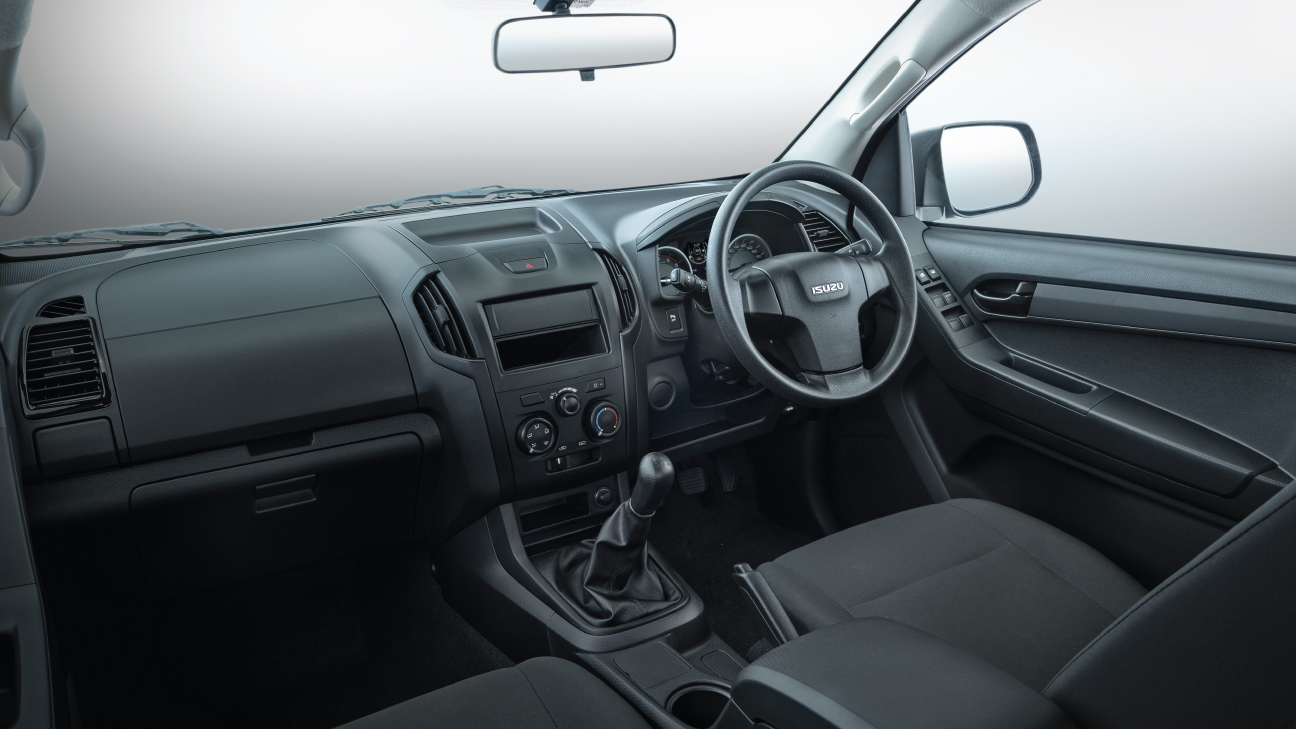

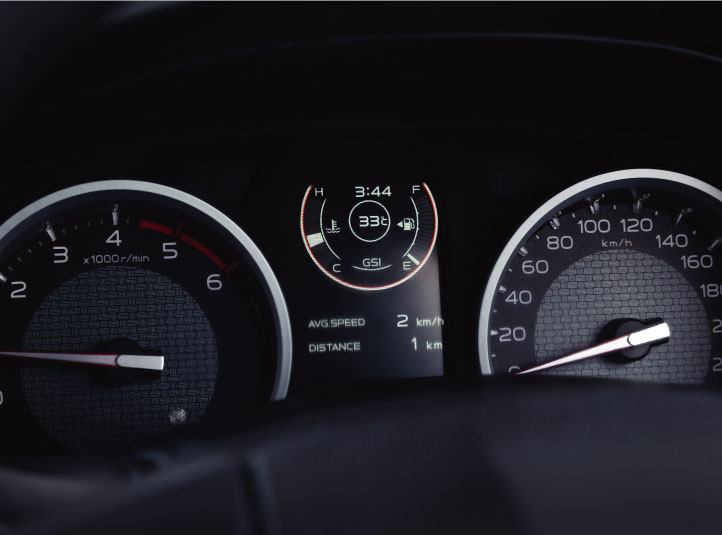

INTERIOR DESIGN
DRIVE IT YOUR WAY
Escape the ordinary and embrace the extraordinary. Let your senses revel in the premium style that envelops you, providing a sanctuary of comfort and confidence

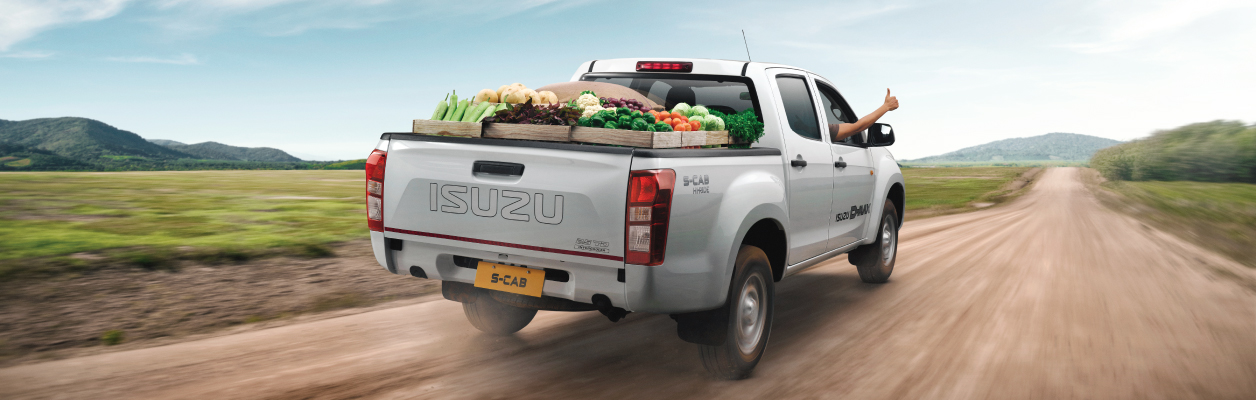

EXTERIOR DESIGN
FOR EVERY ROAD, EVERY LOAD.
From its sculpture grille to the elegant contour lines to its sharp Bi-LED headlights, each detail exudes an unparalleled blend of style and precision.
With an exterior that embodies perfection at its peak, this vehicle stands a timeless symbol of meticulous attention to detail, redefining the very essence of automotive excellence.
S-CAB
Specification
| Model | S-CAB 2WD HR | S-CAB 2WD CBC HR |
| Type | 4 Cylinder, Common Rail, VGT Intercooled Diesel | 4 Cylinder, Common Rail, VGT Intercooled Diesel |
| Cubic Capacity (cc) | 2499 | 2499 |
| Engine Max Power | 58 kW/78 hp @ 398 rad/s (3800 rpm) | 58 kW/78 hp @ 398 rad/s (3800 rpm) |
| Engine Max Torque | 176 Nm @ 157 - 251 rad/s (1500 - 2400 rpm) | 176 Nm @ 157 - 251 rad/s (1500 - 2400 rpm) |
| Emission level | BS 6 stage 2 | BS 6 stage 2 |
| Model | S-CAB 2WD HR | S-CAB 2WD CBC HR |
| No. of speeds | 5 Speed | 5 Speed |
| Shift Type | Manual | Manual |
| Model | S-CAB 2WD HR | S-CAB 2WD CBC HR |
| Brake Type | Hydraulic Brake with large booster (26.67 cm) and LSPV | Hydraulic Brake with large booster (26.67 cm) and LSPV |
| Front Brake | Ventilated Disc with Twin Pot Caliper | Ventilated Disc with Twin Pot Caliper |
| Rear Brake | Drum | Drum |
| Steering Typre | Hydraulic Power Assist with Tilt Adjustment | Hydraulic Power Assist with Tilt Adjustment |
| Model | S-CAB 2WD HR | S-CAB 2WD CBC HR |
| Overall Vehicle (LxWxH) in mm |
5200 x 1860 x 1780 | 5405 x 1860 x 1780 |
| Wheelbase in mm |
3095 | 3095 |
| Cargo Deck Inner (LxWxH) in mm |
1485 x 1530 x 465 | 1485 x 1530 x 465 |
| Model | S-CAB 2WD HR | S-CAB 2WD CBC HR |
| Payload | 995 kg | 995 kg |
| GVW | 2850 kg | 2850 kg |
| Kerb Weight | 1855 kg | 1740 kg |
| Model | S-CAB 2WD HR | S-CAB 2WD CBC HR |
| Fuel Tank | 55 litre | 55 litre |
| DEF Tank | 14.7 litre | 14.7 litre |
| Seating capacity | D+4 | D+4 |
| Model | S-CAB 2WD HR | S-CAB 2WD CBC HR |
| Front | Double Wishbone, with Coil Springs & stabilizer | Double Wishbone, with Coil Springs & stabilizer |
| Rear | Semi-Elliptic Leaf Spring | Semi-Elliptic Leaf Spring |
| Model | S-CAB 2WD HR | S-CAB 2WD CBC HR |
| Wheel Rim Size | 16 x 6.5J-33 | 16 x 6.5J-33 |
| Tyre Size | 205R16C | 205R16C |
| Tyre Type | Radial Tubeless | Radial Tubeless |

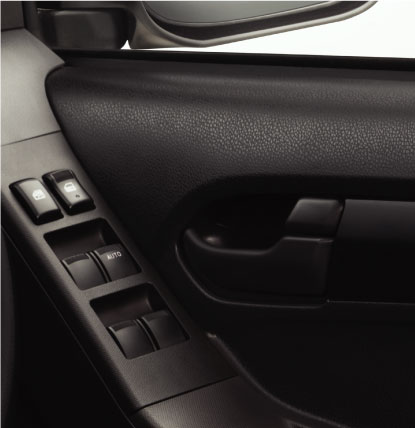

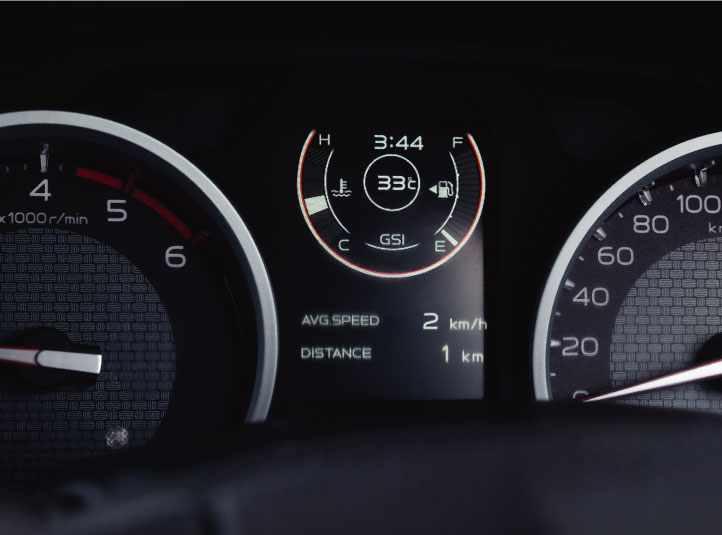

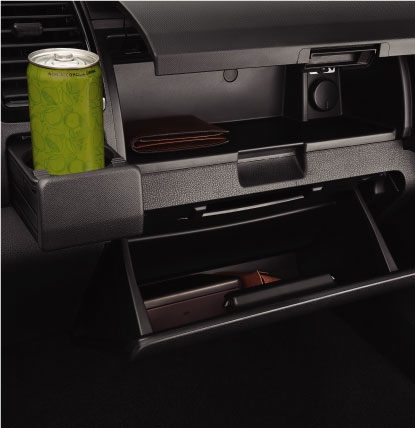

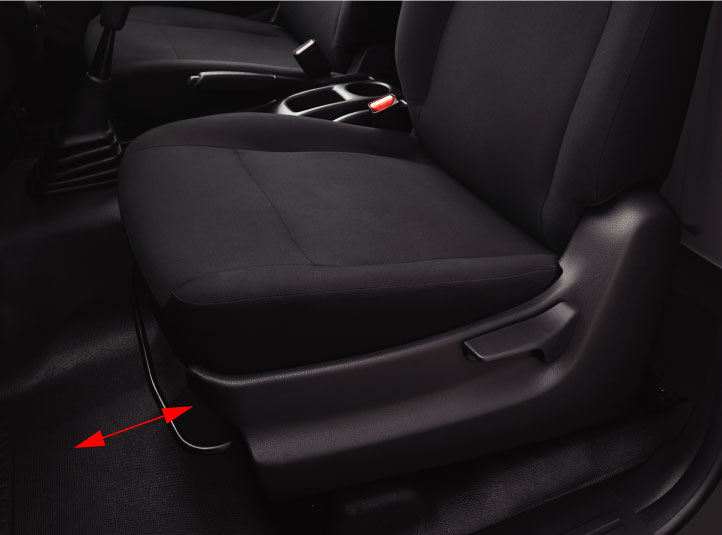

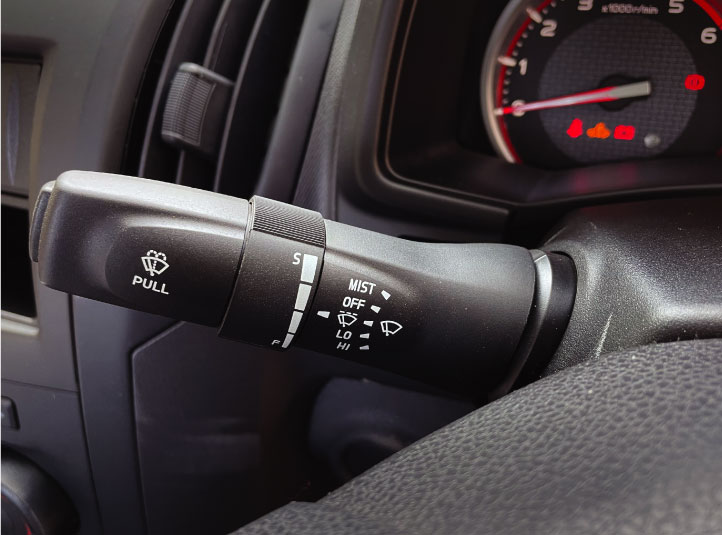

COMFORT AND CONVENIENCE
|

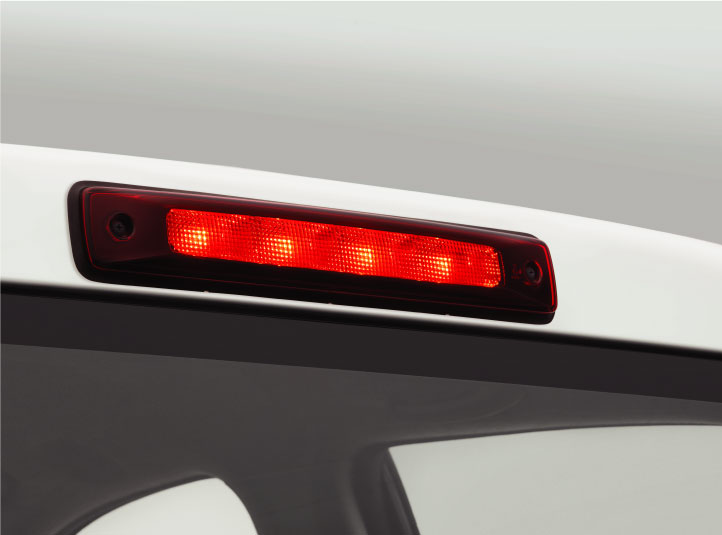

SAFETY AND SECURITY
|

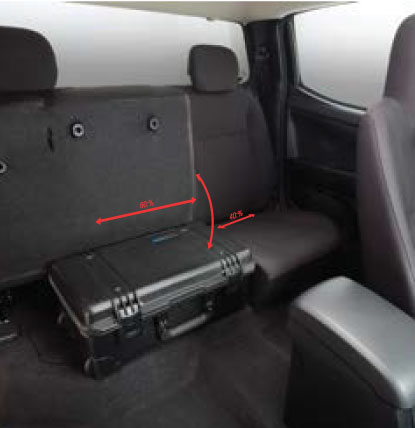

UTILITY
|
