Type | 4 Cylinder, Common Rail, VGS Turbo Intercooled Diesel |
Engine Displacement (cc) | 1898 cm3 |
Max Power (cc) | 1898 cm3 120 kW (163 hp) @ 377 rad/s (3600 rpm) |
Max Torque | 360 Nm @ 209-262 rad/s (2000-2500 rpm) |
Cylinder head | Isuzu-patent special aluminium alloy with double-walled water jacketing |
Cylinder block | Cast iron upper with advanced anti-friction induction-hardened cylinder bores, cast alloy lower |
Valve train | Heavy-duty steel chain-driven dual overhead camshafts (DOHC), roller rockers, 4 valves per cylinder |
Fuel injection | Electronic high pressure common-rail diesel-direct injection (Ddi) |
Air induction | Intercooled Variable Geometry System (VGS) |
Pistons | Diamond-like carbon-coated pistons and injectors |
Emission level | BS 6 stage 2 |
Type | Automatic with Sequential Shift & Brake Shift Lock
Electronically
controlled with Adaptive Grade Logic & fuel-saving Lock-up Torque
Converter. Adaptive Grade Logic Control: holds gear in varied-gradient ascents, selects gear on steep descents to hold speed with engine braking. Uphill & Downhill Drive Control(Transmission based) |
4x4 system | "Terrain Command" control with 'shift-on-the-fly' 2-high 4-high selection at up to 100 km/h |
Drivetrain system | Electronic Stability Control (ESC) & Traction Control System (TCS) |
Type | Power-assisted via 266 mm (10.5 inch) servo unit 4-Channel 4-Sensor Anti-Lock Brake System (ABS) with Electronic Brakeforce Distribution (EBD) & Emergency Brake Assist (EBA) |

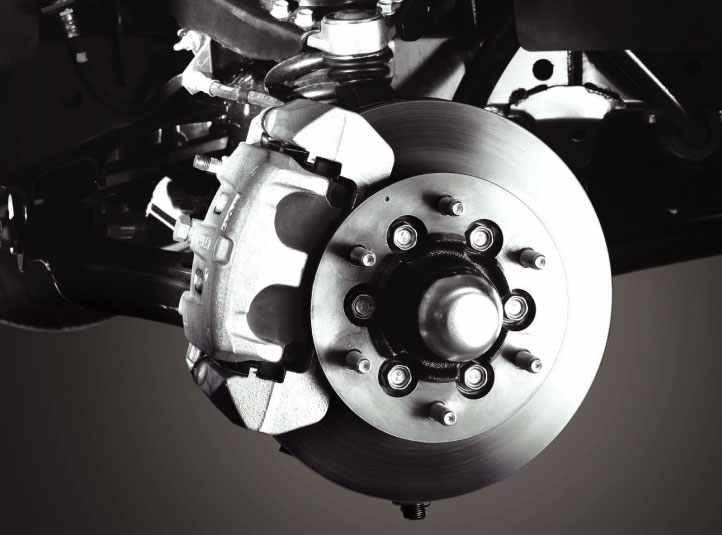

Front | 300 mm dia ventilated front disc with twin-pot calipers |
Rear | 318 mm dia ventilated rear disc |

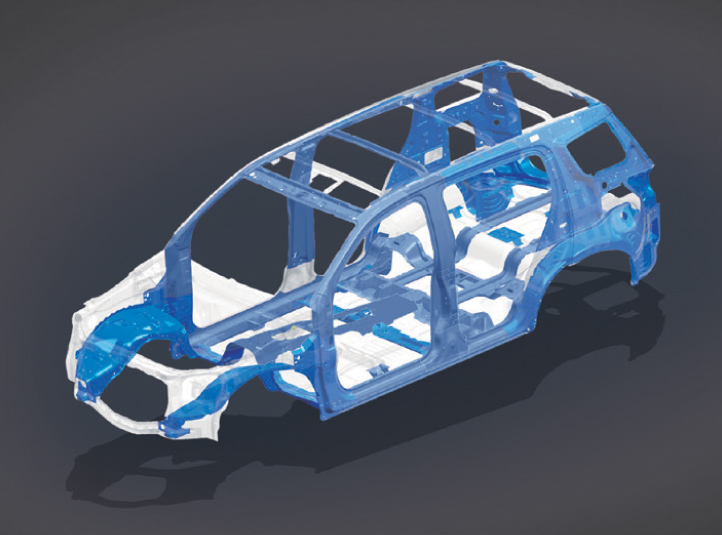

Frame | Seperate, full length heavy duty ladder construction Chassis |
Front suspension | Independent, Double wishbone, coil springs, gas shock absorbers, stabiliser bar |
Rear Suspension | Penta-link coll suspension, gas shock absorbers, stabiliser bar |
Front | Independent. 4x4: fully floating with outer CV & inner double offset joints |
Rear | Rigid semi-floating banjo with hypoid final drive |
Type | Speed-sensitive variable capacity power-assisted rack & pinion system |
Adjustment | Tilt-adjustable steering wheel |
Rim | 18 x 71-33, Diamond-cut Alloy |
Tyre | 250 / 60 R18 |

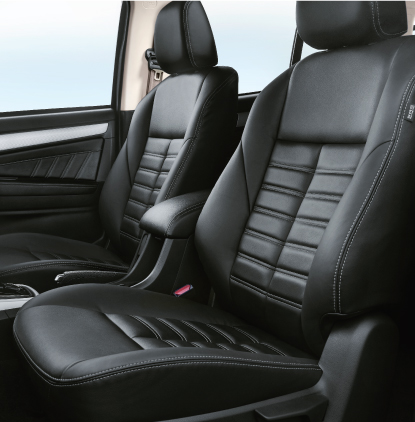

Seating | 7 persons |
Fuel Tank | 55 L capacity High Density Polyethylene (HDPE) tank |

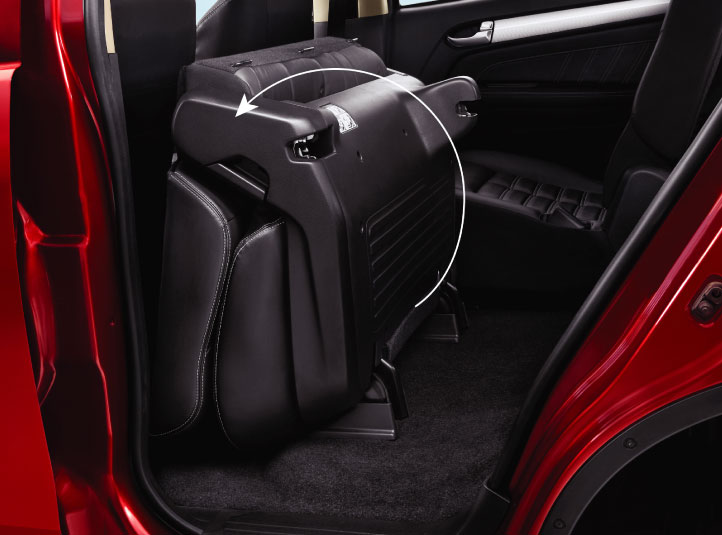

2nd & 3rd row folded flat | 1830 L |
3rd row folded flat | 878 L |
Behind 3rd row | 235 L |
Min. Turning Radius | 5.8 m |
Max Gradeability | 4x2 mode 25° 4x4 mode 30° |
|
|
|
